High Pressure Oil Free Compressor With Compact Structure 1 In / Outlet

Brand Name : Shanghai Rotorcomp

Model Number : RC-D24/08-S1

Certification : ISO.TUV,CE,GS

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : Western Union, T/T, L/C, D/P, D/A

Supply Ability : 3,000 sets/per month

Delivery Time : 15-20 working days

Packaging Details : Exported Wooden Package

Type : Oil Free Compressor

Advantage : High Pressure

Capacity(m3/min) 8bar : 2.4

Power(kw) Motor : 22

In/outlet : 1

Noise : 70dB(A)

Dimension : 1250×1360×1090mm

Weight : 820Kg

Certificates : Class-0,ISO,CE,TUV

Contact Now

High Pressure Oil Free Compressor With Compact Structure 1 In / Outlet

Oil Free Compressor advantages:

  • World-leading Made in Germany Rotorcomp screw air end
  • 5 years warranty
  • Extraordinary cooling system design
  • VSD screw compressor as option
  • higher efficient energy-saving IP55 motor in SF1.2 IE3 CE&MEPS
  • Unique driving guard system of screw compressor

Oil Free Compressor Features

Innovative SuperSilent body housing

Totaly oil free wtih TUV,CE,ISO certificates

Consistent maintenance friendly design

Range from 3.7kW to 55 kW

Easy to move out the elements

Oil Free Compressor Parameters

Model Capacity(m3/min) Power(kw) In/outlet Noise Dimension Weight
8bar Motor dB(A) L×W×H in mm kg
RC-D04/08-S1 0.4 3.7 3/8 55 720×760×1150 220
RC-D06/08-S1 0.6 5.5 3/8 60 720×760×1150 240
RC-D08/08-S1 0.8 7.5 1/2 62 780×790×1250 290
RC-D12/08-S1 1.2 11 1/2 65 1250×760×1090 440
RC-D18/08-S1 1.8 16.5 3/4 68 1250×760×1560 630
RC-D24/08-S1 2.4 22 1 70 1250×1360×1090 820
RC-D30/08-S1 3.0 27.5 1-1/2 72 1250×1360×1560 1010
RC-D36/08-S1 3.6 33 1-1/2 75 1300×1380×1660 1200
RC-D42/08-S1 4.2 38.5 2 78 1350×1460×1660 1280

Note:
1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail;
2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail;

3. Frequency converters (optional).

4. 1 year warranty, 2 years warranty for air end

Why to choose Oil Free Compressor

  1. More simple structure,less wearing part
  2. Medical equipment(medical,dentists gas source as oxygen
  3. Gas separation system equipment(adsorption&membrance separation of oxygen and nitrogen)

Product Tags:

oil free scroll compressor



oil free rotary screw air compressor


Quality High Pressure Oil Free Compressor With Compact Structure 1 In / Outlet wholesale

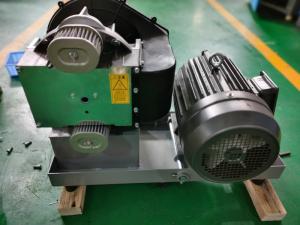

High Pressure Oil Free Compressor With Compact Structure 1 In / Outlet Images
