Product Description:

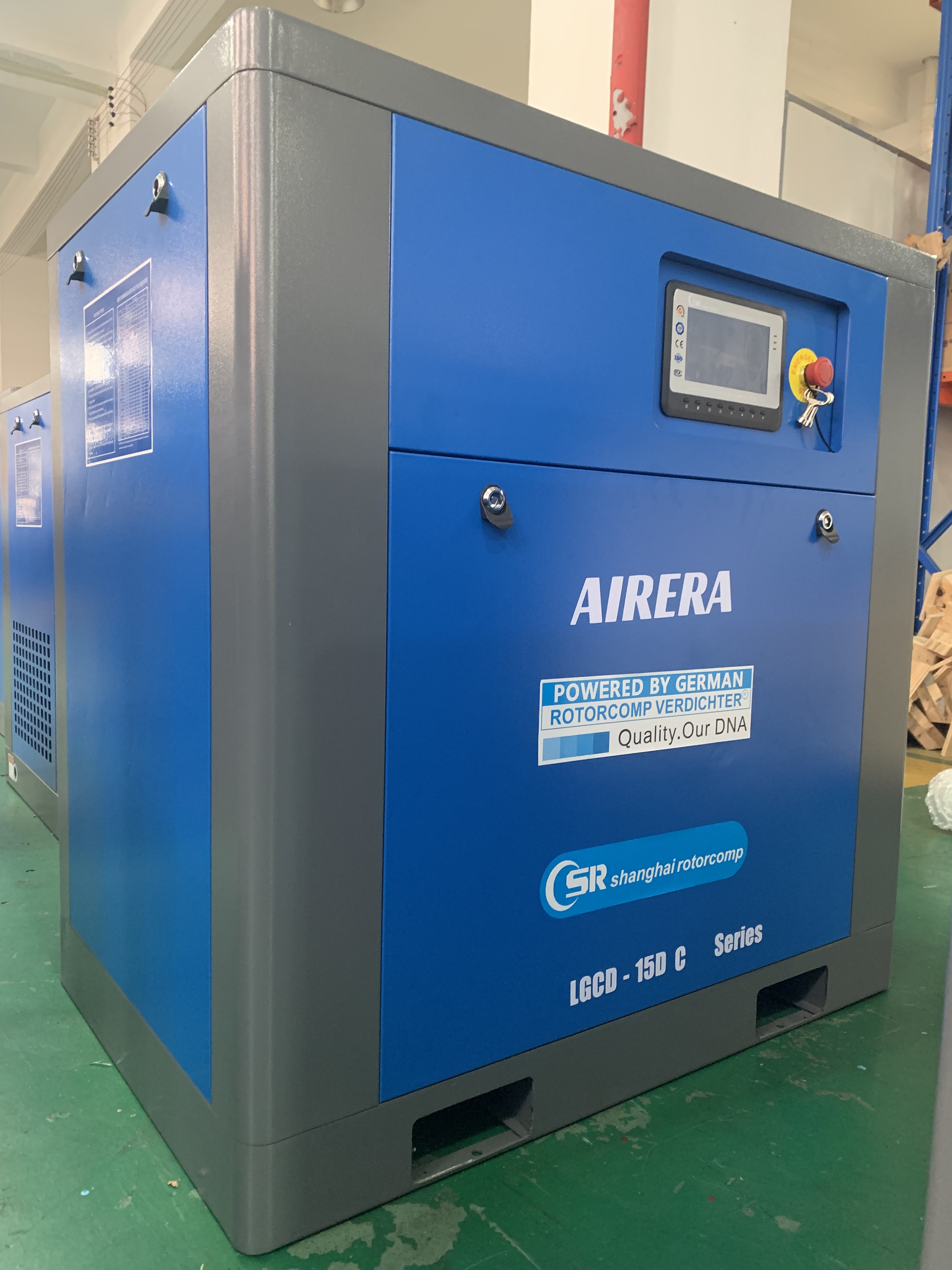

Welcome to LG's official webpage, where cutting-edge technology meets unparalleled reliability. We are proud to introduce the LG CD-15KW Air Cooling Screw Compressor, a masterpiece of industrial innovation designed to meet the rigorous demands of modern manufacturing and beyond. With a powerful 15KW motor, this compressor combines advanced screw compressor technology with an efficient air-cooling system, ensuring optimal performance and reliability in even the most demanding environments.
The Air Cooling Compressor is an electric-powered compressor that is designed to deliver maximum performance and reliability. With a maximum working pressure of 0.7/0.8/1.0/1.3 MPA, this compressor is capable of handling even the toughest jobs with ease.
One of the key features of the Air Cooling Compressor is its oil-lub screw design, which provides superior performance and efficiency. This design ensures that the compressor runs smoothly and quietly, while also reducing maintenance and repair costs.
The Air Cooling Compressor also comes with a range of other features that make it the ideal choice for any industrial or commercial application. These include a large lubricating oil volume of 10-50L, which ensures that the compressor can run for extended periods without needing to be refilled.
Whether you need a compressor for a manufacturing plant, a construction site, or any other industrial application, the Air Cooling Compressor is the perfect choice. With its powerful performance, efficient operation, and reliable design, this compressor is sure to meet all your needs and exceed your expectations.
Features:
- High-Efficiency Screw Compressor: The LG CD-15KW Air Cooling Screw Compressor utilizes a double-helix rotor design for minimal vibration and whisper-quiet operation, perfect for sensitive environments.
- Advanced Air-Cooling System: An integrated air-cooling system maintains optimal operating temperatures, enhancing reliability and prolonging equipment lifespan.
- Intuitive Control Interface: The compressor features an LCD touchscreen control panel for easy monitoring and adjustment of settings, ensuring precision and ease of use.
- Robust and Durable Construction: Built with premium materials and rigorous quality control, the LG CD-15KW Air Cooling Screw Compressor guarantees long-term performance and reliability.
- Certified Safety and Compliance: ISO, CE, and UL certified, ensuring it meets the highest international safety and quality standards.
This product is a type of rotary screw air compressor, also known as a rotary-screw compressor or simply a screw air compressor.
Technical Parameters:
| Technical Data of Rotorcomp LGSD(C) series Screw Air Compressor | | ITEM | UNIT | MODEL | | | | LGSD-15 | | Compressor | | ¹ Capacity (f.a.d.) at gauged pressure | m3/min | 2.35 | 2.3 | 2.05 | | Max. working pressure | MPa | 0.7 | 0.8 | 1 | | Compressor type | | Oil inject screw compressor | | Cooling type | | Air cooling | | Driven type | | Direct driven | | Inlet status | Temperature | ℃ | ≤45 | | | Pressure | MPa | Atmospheric pressure | | | Relative humidity | | ≤90% | | Cooling air flow | m3/hr | 5300 | | Control mode | | Intelligent controller | | Safety valve set pressure | MPa | 0.77 | 0.88 | 1.1 | | Lubricating oil volume | L | 10 | | Lubricating oil brand | | ROTORCOMP | | Drive rotor speed | rpm | 2930 | | Main Motor | Rated Power | KW | 15 | | | Type | | Fix speed | | | Speed | rpm | 2930 | | | Service factor | | 1.2 | | | Protection type | | IP55 | | | Insulation class | ISO | F | | | Efficiency | | IE3 | | | Startup mode | | ʏ-Δ starting | | | Voltage(Special on request) | V | 380 | | | Frequency(Special on request) | Hz | 50 | | | Rated current | A | 27.86 | | Fan Motor | Rated Power | KW | 0.37 | | | Type | | Fix speed | | | Speed | rpm | 1470 | | | Protection type | | IP55 | | | Insulation class | ISO | F | | | Startup mode | | Direct starting | | | Voltage(Special on request) | V | 380 | | | Frequency(Special on request) | Hz | 50 | |
Why Choose This Machine:
With certifications such as ISO, CE, and TUV, this lubricated screw compressor is engineered to meet the highest standards of quality and safety. The intelligent controller feature in this compressor allows for easy operation and control, providing flexibility to the user. The compressor type used is oil-injected screw compressor, which ensures that the compressor runs with the highest efficiency and minimal maintenance.
The cooling air flow of 4800 M3/hr ensures that the compressor remains cool, even under heavy load conditions. This makes it ideal for use in a variety of applications, including manufacturing, automotive, and construction. The rotary screw air compressor is also designed to be highly durable, ensuring long-term reliability and performance.
The minimum order quantity for this product is 1, and the price is negotiable. The compressor is packed in a wooden case, ensuring safe and secure transportation. The delivery time for this product is between 5-15 working days, and payment can be made using TT, LC, D/A, D/P, or Western Union. With a supply ability of 1,000 units per month, you can be sure to receive your compressor in a timely manner.
In conclusion, the shanghai rotorcomp lubricated screw compressor, model LGCD-5.5-75kw, is a reliable and efficient solution for industrial applications. With its intelligent controller, efficient cooling system, and durable design, this compressor is the ideal choice for a wide range of industries. So, whether you are in manufacturing, automotive, or construction, this rotary screw air compressor is the perfect choice for your business.
Conclusion:
In conclusion, the LG CD-15KW Air Cooling Screw Compressor is a game-changer in the world of industrial air compression. It combines cutting-edge technology with reliability and sustainability, offering a powerful solution for diverse industrial needs. Whether you're looking to optimize your operational efficiency, reduce costs, or contribute to environmental responsibility, this compressor is your ideal partner. Visit our website today to learn more about how the LG CD-15KW Air Cooling Screw Compressor can transform your industrial operations.
